Problems related to traffic congestion, safety and environmental challenges could be solved if people, vehicles, infrastructures and businesses were connected into one cooperative ecosystem. The existence of such a system could create a virtuous circle in which each type of user can generate valuable data for others.

Privacy warning

With the click on the play button an external video from www.youtube.com is loaded and started. Your data is possible transferred and stored to third party. Do not start the video if you disagree. Find more about the youtube privacy statement under the following link: https://policies.google.com/privacy

In the EU project TIMON, the 11 partners worked on a cooperative ecosystem that connects all road users to increase safety, sustainability, flexibility and efficiency of road transport systems.

Autobahnkreuz aus der Vogelperspektive
© bigstockphoto.com / Paha_L

In project TIMON (enhanced real TIme services for optimized multimodal MObility relying on cooperative Networks and open data) the Fraunhofer Institute for Cognitive Systems IKS (former Fraunhofer ESK) together with partners from seven other European countries aimed to increase safety, sustainability, flexibility and efficiency of road transport systems by leveraging data from a diverse set of sources, i.e. open transport data, infrastructure sensors, data generated by drivers and vulnerable road users (VRUs).

This data is aggregated, harmonized, and processed by a cooperative open web based platform and a mobile application, developed with the purpose of delivering information and services to drivers, VRUs and businesses in real time. In addition the project has the following main objectives:

  • Harmonize data from open transport data sources to be used in real-time information services
  • Leverage the information gathered from different sources, by applying artificial intelligence techniques to enable traffic congestion prediction and optimized routing
  • Provide highly accurate positioning information for vehicles and VRUs through cooperative positioning techniques
  • Design and implement an ITS-G5/LTE capable hybrid communication system enabling usage of both technologies in an intelligent, cooperative way

Heterogeneous Networks for Vehicular Communication

Hybrid communication systems within TIMON are mobile nodes which are capable of communicating in both a distributed manner by employing ITS-G5 and a centralized manner by using LTE. ITS-G5 is more appropriate for applications which need to exchange real-time information of local relevance whereas LTE is more suited for distribution of non-real-time information over a large geographical area. The challenge in TIMON was the implementation of a hybrid communication system that enables the cooperation of both radio technologies such that the Quality of Service (QoS) requirements of ITS applications are satisfied and improved. TIMON not only aimed to include vehicles and backend systems, but also VRUs such as pedestrians and cyclists into one ITS system.

Radio Access Technology Selection and LTE Capable GeoNetworking

Within TIMON, an adaptive cross-layer approach was implemented, capable of making local forwarding decisions based on flexible policies to select the optimal communication medium at any time. This was done through continuous monitoring of available communication resources and parameters such as link quality and neighborhood distribution.

Implementation of the centralized approach also required the introduction of a new network component called the GeoMessagingServer (GMS). The GMS maintains the context of the vehicular network through periodic location updates sent from vehicles which are LTE capable. Since GMS is aware of the mapping between IP addresses and geographical positions, it can distribute messages to vehicles in a geographical target area via cellular links.

Using such a hybrid communication system has the following advantages:

  • Information is delivered to endpoints through a coordinated strategy among different technologies so intra- and intertechnology optimizations are possible
  • The routing is transparent to the applications allowing the same applications to be used in different systems, contexts and with different technologies
  • Thanks to dynamic technology switching, limitations imposed by a standalone distributed or centralized approach are reduced

Simulation and Field Tests

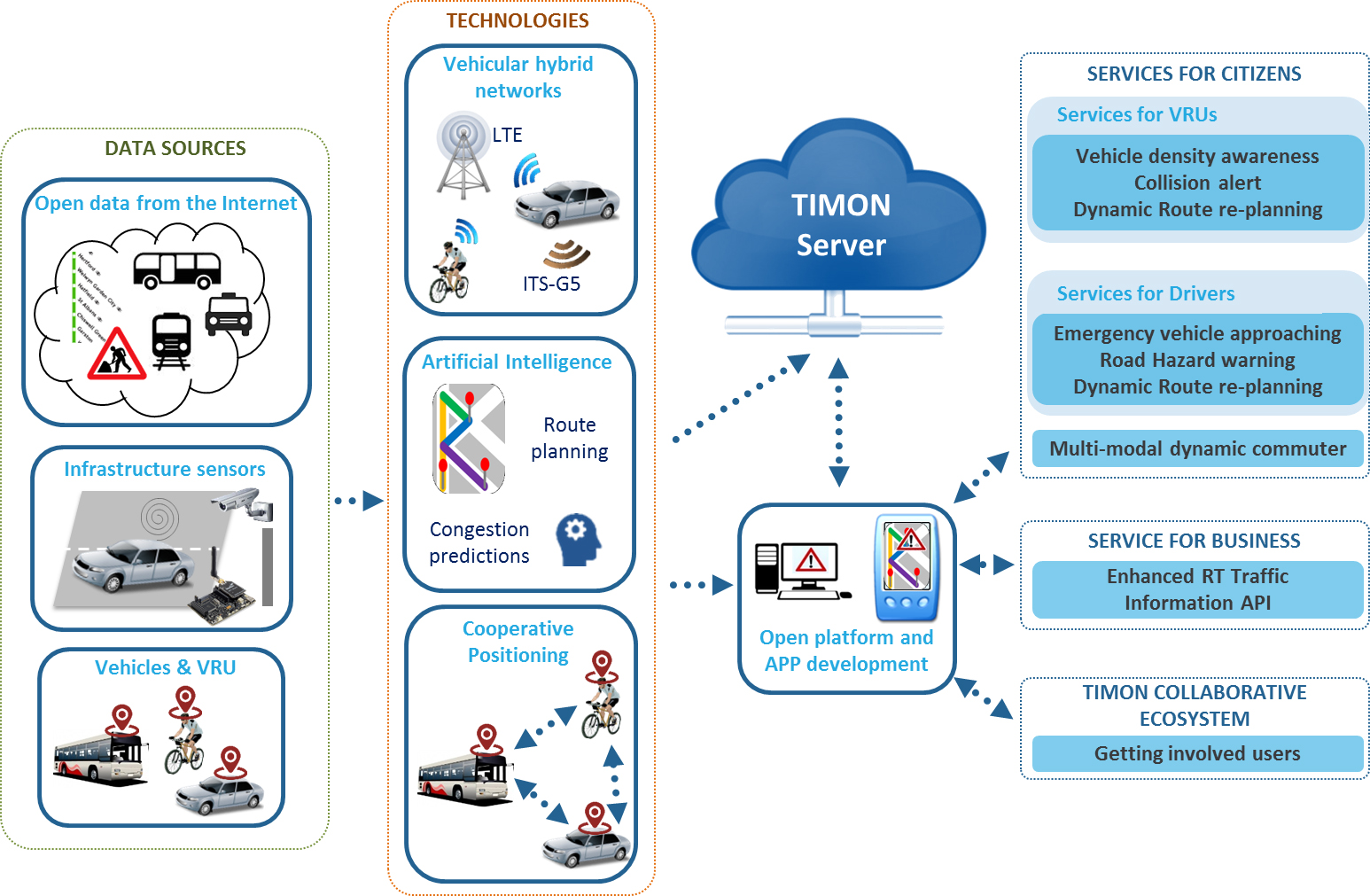

TIMON System Architecture

The evaluation of novel hybrid ITS communication solutions was based on simulation which serves as an input in the development of a prototyping platform. This hybrid communication unit prototype comprises an OBU with LTE and ITS-G5 communication interfaces, and makes use of Fraunhofer IKS’s ezCar2X® software framework which provides a variety of ETSI ITS protocols with the proposed hybrid communication extensions. Throughout the project, field tests proved the developed concept as well as provided feedback for the performance and limitation of the deployed system. TIMON services, such as collision alerting for VRUs and road hazard warning, were tested and validated in test sites in the Netherlands and Slovenia.

TIMON project has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No 636220.
